Table of Contents

Acknowledgements

GameBook is based on AddressBook Level-3 developed by the SE-EDU initiative

Some code adapted from http://code.makery.ch/library/javafx-8-tutorial/ by Marco Jakob

Copyright by Gil Kalai - https://gilkalai.wordpress.com/

  • gamebook_icon.png

Copyright by Jan Jan Kovařík - http://glyphicons.com/

  • calendar.png
  • edit.png

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

:bulb: Tip: The .puml files used to create diagrams in this document can be found in the diagrams folder. Refer to the PlantUML Tutorial at se-edu/guides to learn how to create and edit diagrams.

Architecture

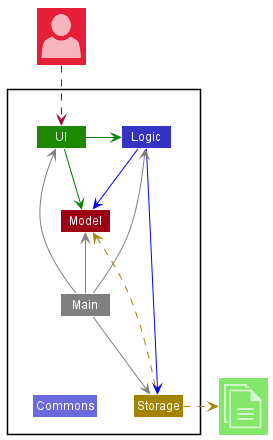

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main has two classes called Main and MainApp. It is responsible for,

  • At app launch: Initializes the components in the correct sequence, and connects them up with each other.
  • At shut down: Shuts down the components and invokes cleanup methods where necessary.

Commons represents a collection of classes used by multiple other components.

The rest of the App consists of four components.

  • UI: The UI of the App.
  • Logic: The command executor.
  • Model: Holds the data of the App in memory.
  • Storage: Reads data from, and writes data to, the hard disk.

How the architecture components interact with each other

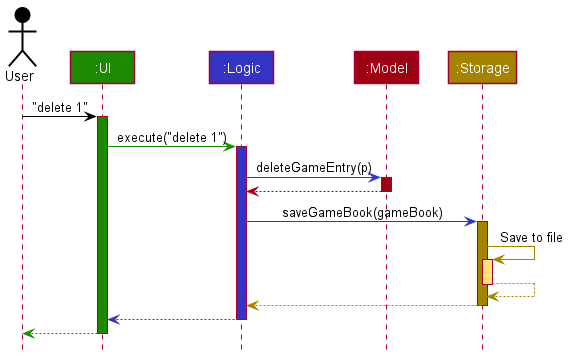

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

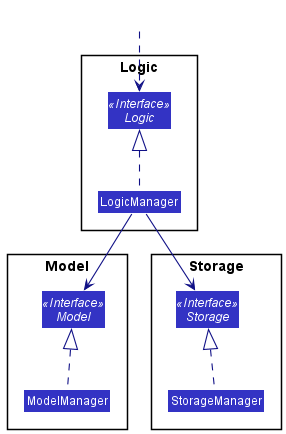

Each of the four main components (also shown in the diagram above),

  • defines its API in an interface with the same name as the Component.
  • implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component’s being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

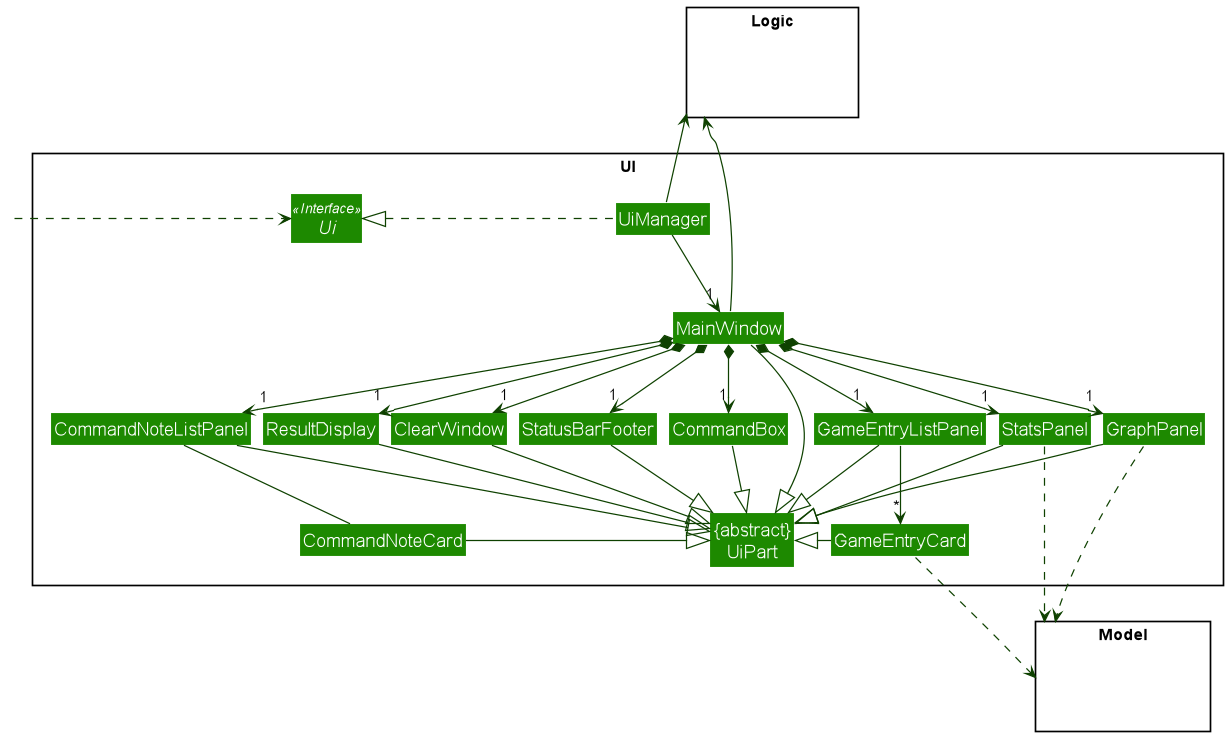

Structure of the UI Component

The UI consists of a MainWindow that is made up of parts e.g. CommandBox, ResultDisplay, GameEntryListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

  • executes user commands using the Logic component.
  • listens for changes to Model data so that the UI can be updated with the modified data.
  • keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
  • depends on some classes in the Model component, as it displays GameEntry object residing in the Model. The graph and statistics displays also depend on GameEntryList.

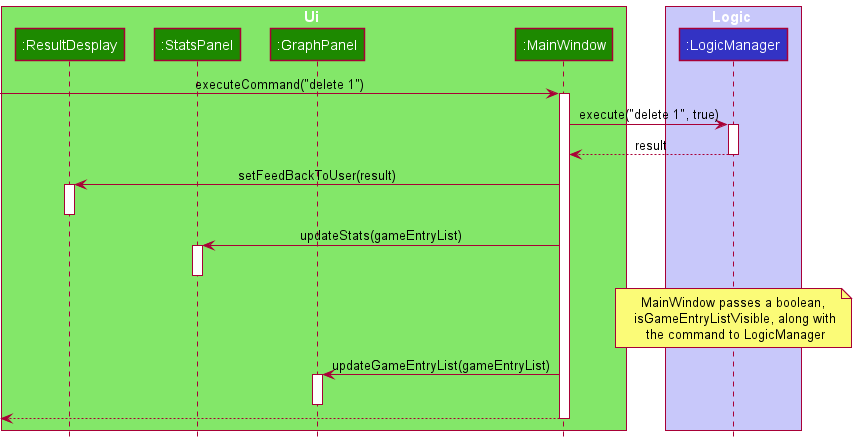

Below is a sequence diagram that shows how some of the Ui components interact when a command is executed. (in this case a delete command)

DeleteSequenceDiagram(UI)

Logic component

API : Logic.java

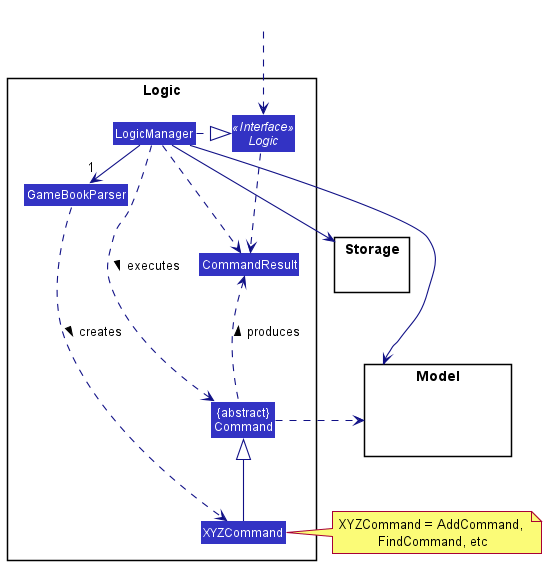

Here’s a (partial) class diagram of the Logic component:

How the Logic component works:

  1. When Logic is called upon to execute a command, it uses the GameBookParser class to parse the user’s command.
  2. Along with the user’s command, GameBookParser uses additional information about the UI to determine what kind of command to parse for.
  3. This results in a Command object (more precisely, an object of one of its subclasses e.g., AddCommand) which is executed by the LogicManager.
  4. The command can communicate with the Model when it is executed (e.g. to add a game entry).
  5. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

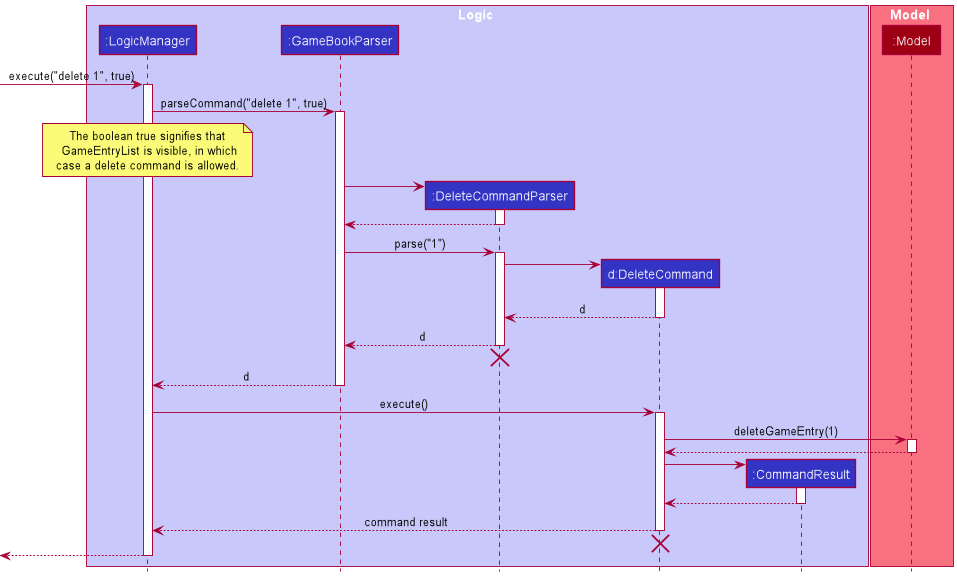

The sequence diagram below illustrates the interactions within the Logic component for the execute("delete 1") API call.

SequenceDiagramForDeleteCommandLogic

:information_source: Note: The lifeline for DeleteCommandParser and DeleteCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

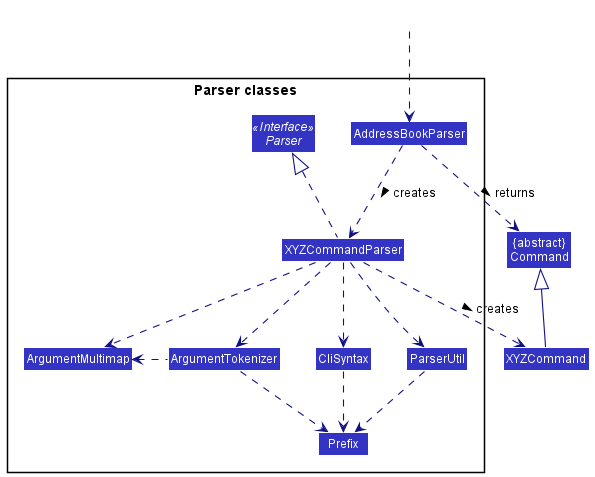

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

  • When called upon to parse a user command, the GameBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the GameBookParser returns back as a Command object.
  • All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, …) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

Model component

API : Model.java

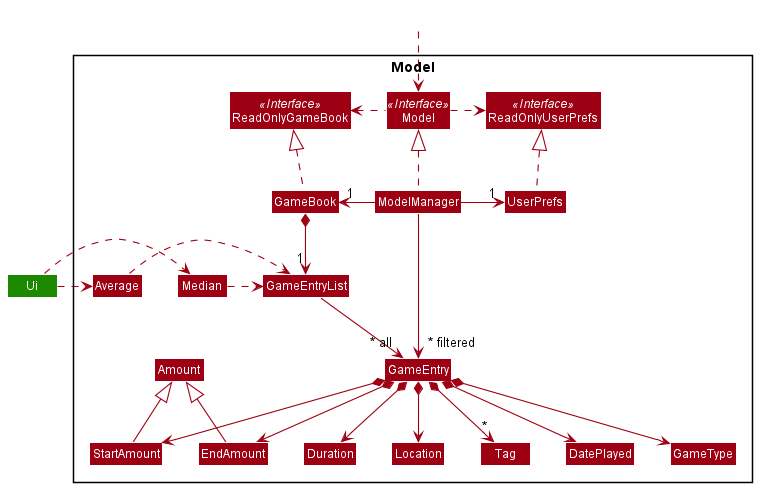

The Model component,

  • stores the game book data i.e., all GameEntry objects (which are contained in a GameEntryList object).
  • stores the currently ‘selected’ GameEntry objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<GameEntry> that can be ‘observed’ e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
  • stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
  • does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Storage component

API : Storage.java

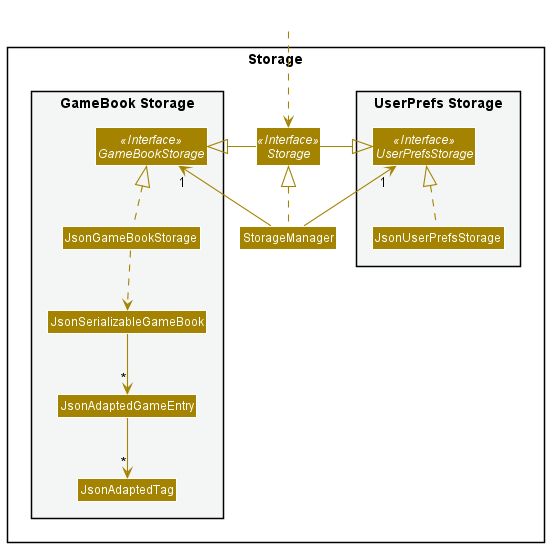

The Storage component helps save Game Book data and User Preferences to a json file after every use, and read them from a json file while restarting the app.

  • The Storage component also plays a key role in supporting other functions such as the analysis of average profits.
  • It inherits from both GameBookStorage and UserPrefsStorage, which means it can be treated as either one.
  • It depends on some classes in the Model component (because the Storage component’s job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.gamebook.commons package.

Implementation

This section describes some noteworthy details on how certain features are implemented.

Adding a game entry

The below provides a step-by-step break down of the mechanism for adding a game entry. Assume that the user has already launched GameBook and the app has loaded data from storage.

  1. The user inputs a command, such as add /g Poker /p 35 /dur 40m /loc Resort World Sentosa Casino /dur 50m /date 2021-10-21 15:10 which calls upon MainWindow#executeCommand().
  2. MainWindow#executeCommand() passes the user’s input to LogicManager#execute()to process, which calls upon GameBookParser#parseCommand().
  3. GameBookParser#parseCommand() parses the input and returns an AddCommand.
  4. LogicManager#execute() executes AddCommand by calling AddCommand#execute(), which adds the new entry to a List and sorts it by date.
  5. AddCommand#execute() then encapsulates the result of the command execution in a new CommandResult object to its caller, LogicManager#execute().
  6. LogicManager#execute() calls Storage to store the new game entry list and returns CommandResult to MainWindow#executeCommand().
  7. MainWindow#executeCommand() executes resultDisplay#setFeedbackToUser() to display the message from CommandResult to the user.
  8. MainWindow#executeCommand() calls StatsPanel#updateStats() and GraphPanel#updateGameEntryList() to update the statistics and graph with the new game entry list.

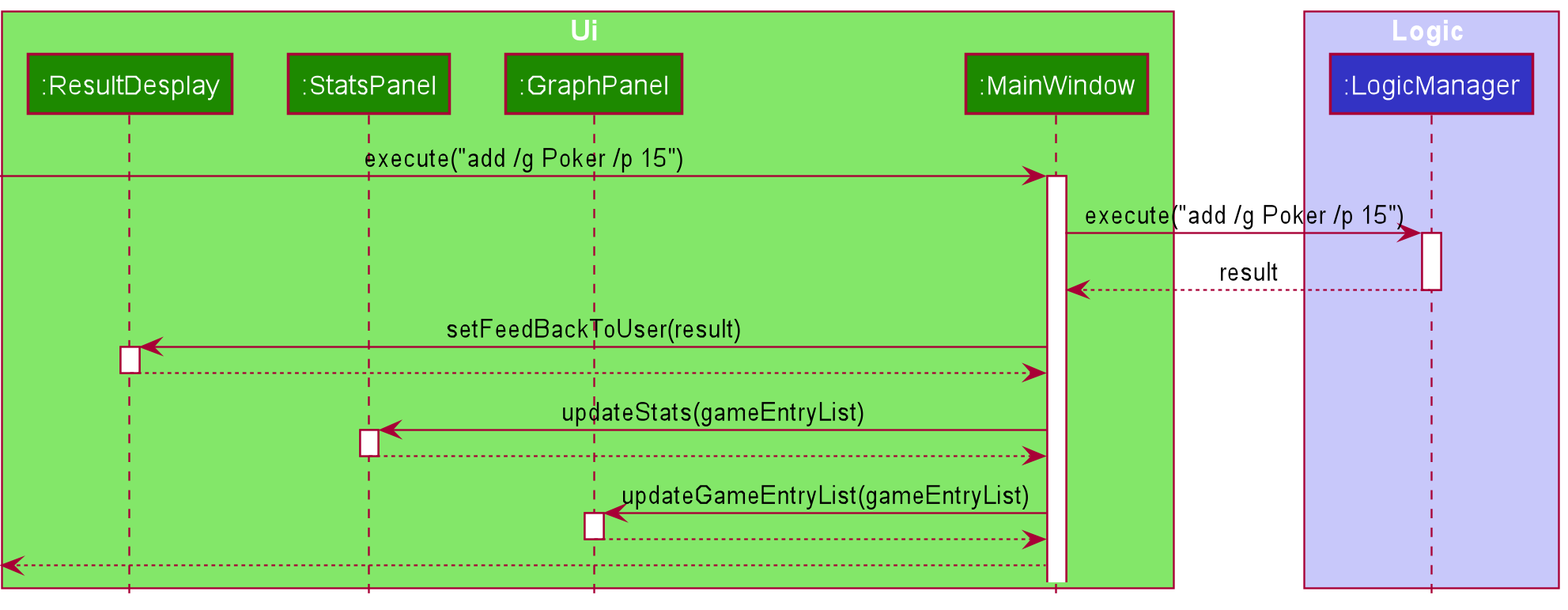

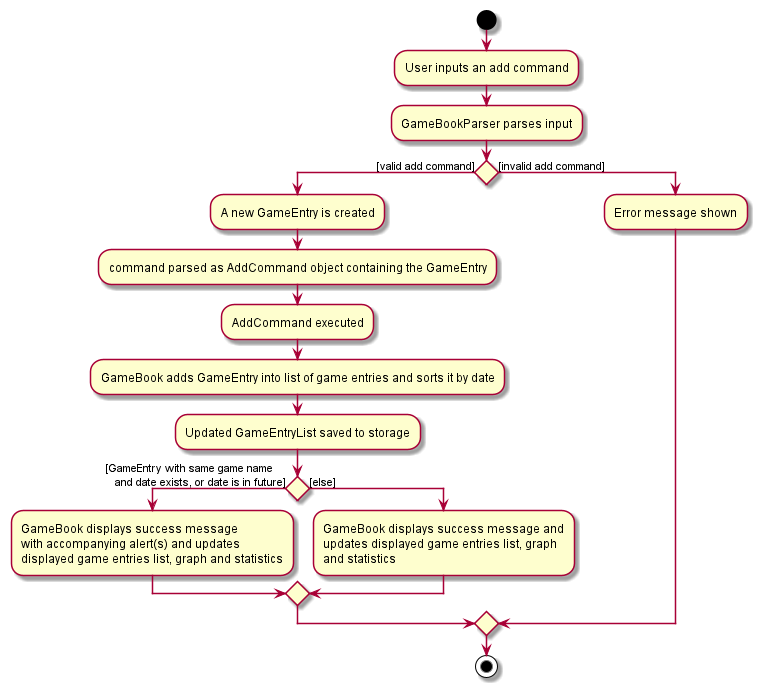

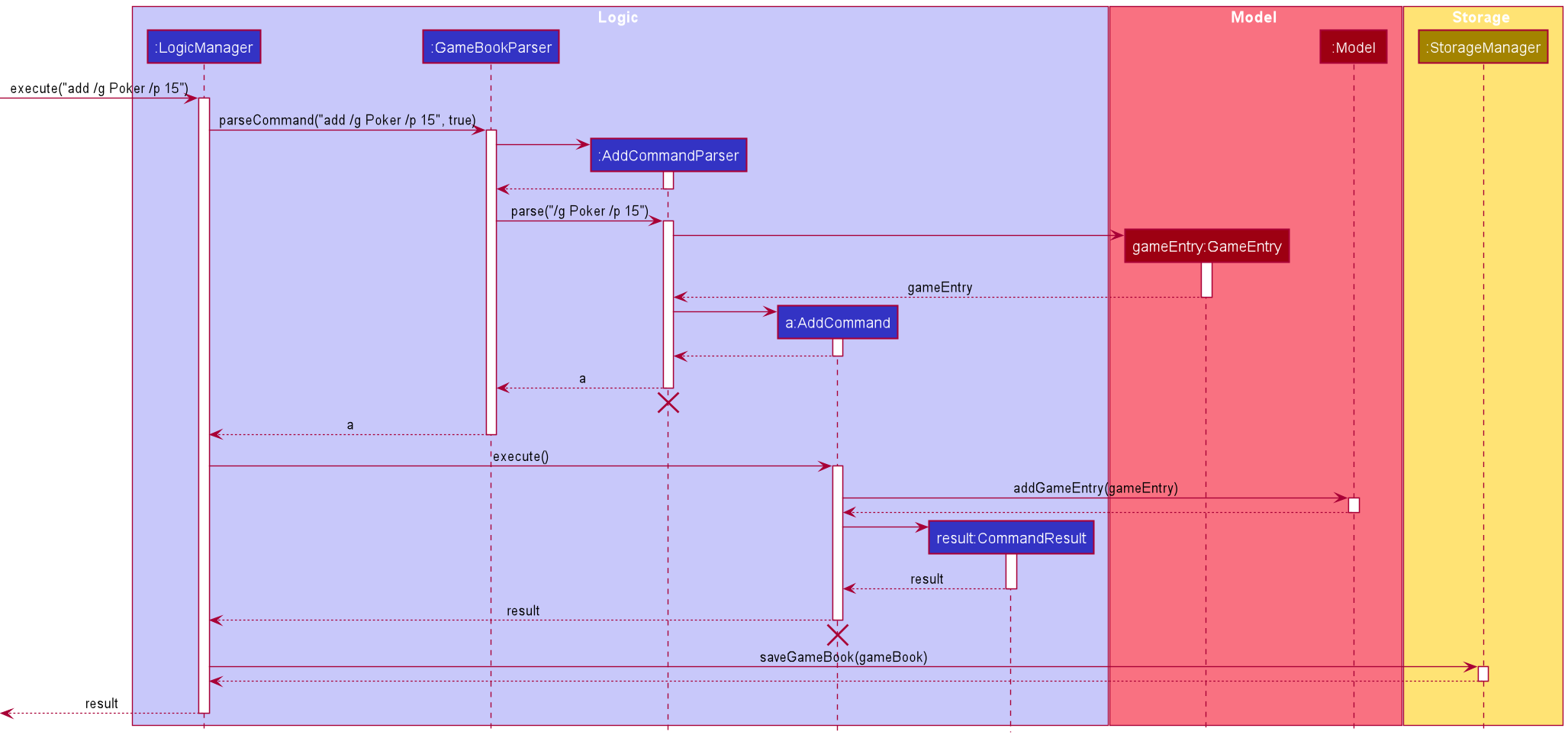

The following activity and sequence diagrams illustrate the mechanism of adding a new game entry. Activity diagram of an add command

Note that the second sequence diagram is a continuation of the first. Sequence diagram of an add command (Ui) Sequence diagram of an add command (Logic onwards)

:information_source: Note: The lifeline for AddCommandParser and AddCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Editing a game entry

Editing a game entry requires user input from the CLI. The GameBook parser will check the validity of the input. It is valid if

  • The list of games currently displayed is not empty, and the chosen index is a valid index.
  • At least one field is chosen to be edited.
  • The formats of all fields entered, such as game name, start amount, end amount, location etc must be in the correct format.

Assume that the user has already launched GameBook and the app currently displays this: GameBook UI

The below provides a step-by-step break down of the mechanism for editing a game entry.

  1. The user inputs edit 1 /g Mahjong which calls upon which calls upon MainWindow#executeCommand().
  2. MainWindow#executeCommand() passes the user’s input to LogicManager#execute() to process.
  3. LogicManager#execute() calls GameBookParser#parseCommand() to parse the input.
  4. GameBookParser#parseCommand() parses the input and returns an EditCommand.
  5. LogicManger#execute() executes EditCommand by calling EditCommand#execute().
  6. LogicManager#execute() selects the GameEntry to be edited, creates an edited copy of it, and calls ModelManager#setGameEntry() to replace the original GameEntry with the edited one. It then returns a CommandResult to LogicManager#execute().
  7. LogicManager#execute() calls Storage to store the new game entry list and returns CommandResult to MainWindow#executeCommand().
  8. MainWindow#executeCommand() executes resultDisplay#setFeedbackToUser() to display the message from CommandResult to the user.
  9. MainWindow#executeCommand() callsStatsPanel#updateStats()and GraphPanel#updateGameEntryList() to update the statistics and graph with the new game entry list.

The following diagrams illustrates the process of executing an edit command. The Ui components for the sequence diagram are omitted as it is very similar to the first half of the sequence diagram under “Adding a GameEntry” above.

Activity diagram of an edit command

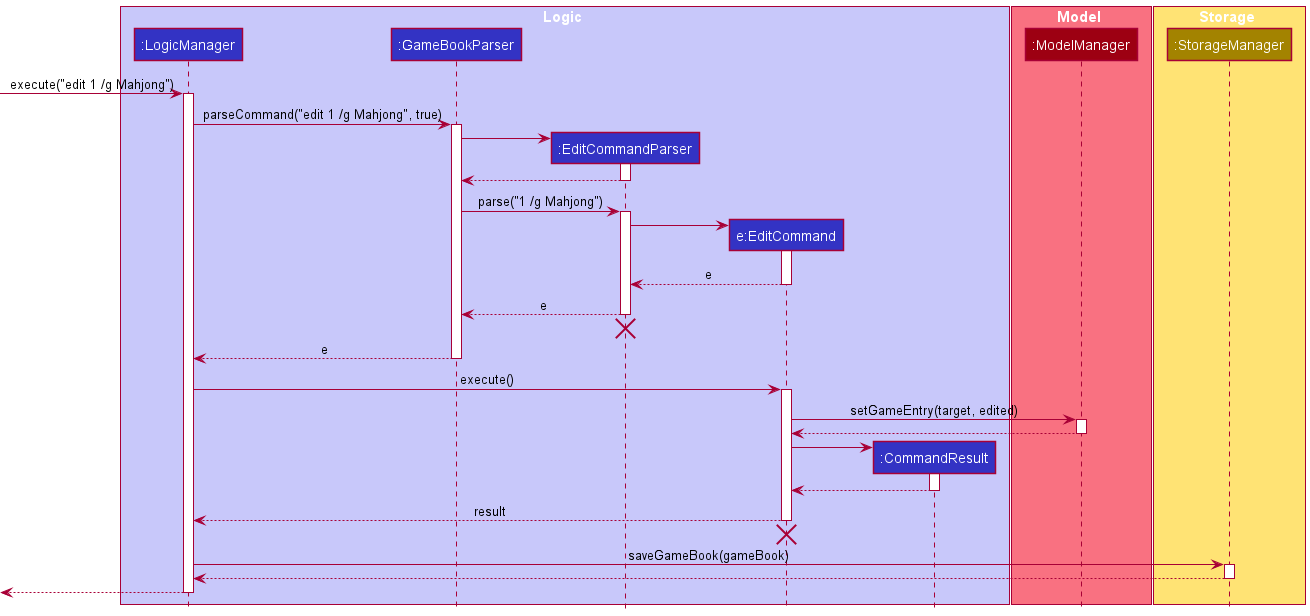

Sequence diagram of an edit command (Logic onwards)

:information_source: Note: The lifeline for EditCommandParser and EditCommand should end at the destroy marker (X) but due to a limitation of PlantUML, the lifeline reaches the end of diagram.

Deleting a game entry

Deleting a game entry requires user input from the CLI. The format of input should be delete [INDEX]. The user should obtain the index of the game entry to be deleted from the GameEntryList, which will show a list of game entries previously added or filtered by the user. GameBookParser will check for the validity of the input. It is valid if

  • The index specified by the user is bigger than 0 and smaller or equal to the number of game entries in the displayed list.
  • GameEntryList is currently displayed.

The below provides a step-by-step break down of the mechanism for deleting a game entry. Assume that the user has already launched GameBook and the app has loaded data from storage. Assume also that the GameEntryList is displayed and contains more than 1 game entry.

  1. The user inputs delete 1 which calls upon MainWindow#executeCommand().
  2. MainWindow#executeCommand() passes the user’s input and information about the UI to LogicManager#execute() to process.
  3. LogicManager#execute() calls GameBookParser#parse() to parse the input while taking account of the UI condition (whether GameEntryList is visible to the user).
  4. GameBookParser#parse() parses the input and returns a DeleteCommand.
  5. LogicManger#execute() executes DeleteCommand by calling DeleteCommand#execute().
  6. DeleteCommand#execute() calls ModelManager#deleteGameEntry() to delete the game entry from the game entry list and returns a CommandResultto LogicManager#execute().
  7. LogicManager#execute() calls Storage to store the new game entry list and returns CommandResult to MainWindow#executeCommand().
  8. MainWindow#executeCommand() executes ResultDisplay#setFeedbackToUser() to display the message from CommandResult to the user.
  9. MainWindow#executeCommand() callsStatsPanel#updateStats()and GraphPanel#updateGameEntryList() to update the statistics and graph with the new game entry list.

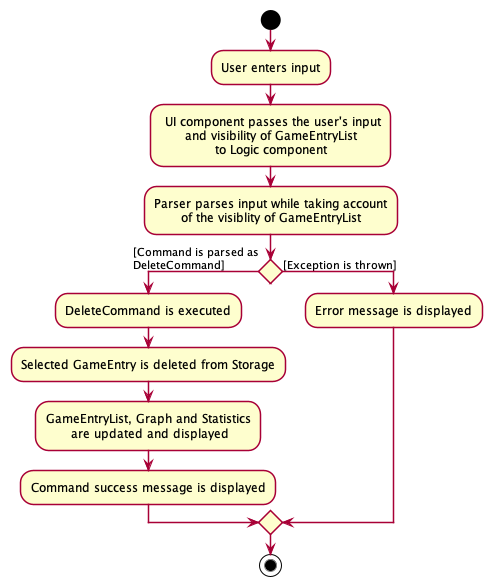

Below is an activity diagram for a delete command.
Activity diagram of a delete command
Please refer to the sequence diagrams in UI Component and Logic Component for details about how classes in UI and Logic interact to execute a delete command.

Finding game entries

Finding a game entry requires user input from the CLI. Multiple keywords can be used to search the list using the format find [KEYWORD_1] [KEYWORD_2] .... By calling find [KEYWORD] the GameType, Location and Tags of the game entries in the GameEntryList are searched, and the game entries containing the input keywords are displayed in the list. A blank or empty keyword is considered as an invalid, and if the game entries in the list don’t contain the keyword, an empty list is displayed. The validity of the input command is checked by GameBookParser.

The below provides a step-by-step breakdown of the mechanism of finding game entries. Assume that the user has already launched GameBook, and the app has loaded data from storage. Also assume that the displayed list contains more than 1 game entry and contains a game entry with GameType “Poker”.

  1. The user inputs find poker which calls MainWindow#executeCommand().
  2. MainWindow#executeCommand() passes the user’s input and UI information to LogicManager#execute() to process.
  3. LogicManager#execute() calls GameBookParser#parse() which checks the validity of the command then parses the input.
    Since the input and command format are valid, no error message is displayed.
  4. Next, a GameEntryContainsKeywordPredicate is created with the search keywords
  5. After parsing the input, a FindCommand is created and returned with the GameEntryContainsKeywordPredicate which is then executed by calling FindCommand#execute()
  6. Then the filteredGameEntries list is updated with the GameEntryContainsKeywordPredicate by calling Model#updateFilteredGameEntryList()
  7. FindCommand#execute() returns a CommandResult which contains the number of entries matching the search keyword
  8. The CommandResult is displayed to the user when ResultDisplay#setFeedbackToUser() is called by MainWindow#executeCommand()
  9. MainWindow#executeCommand() callsStatsPanel#updateStats()and GraphPanel#updateGameEntryList() to update the statistics and graph with the new game entry list.

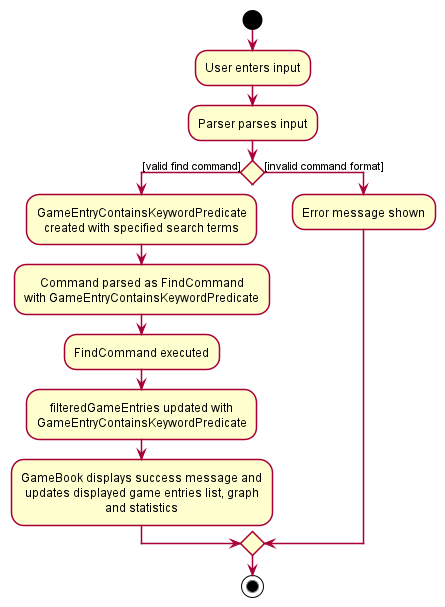

Below are the activity and sequence diagrams for the find command Activity Diagram for find command

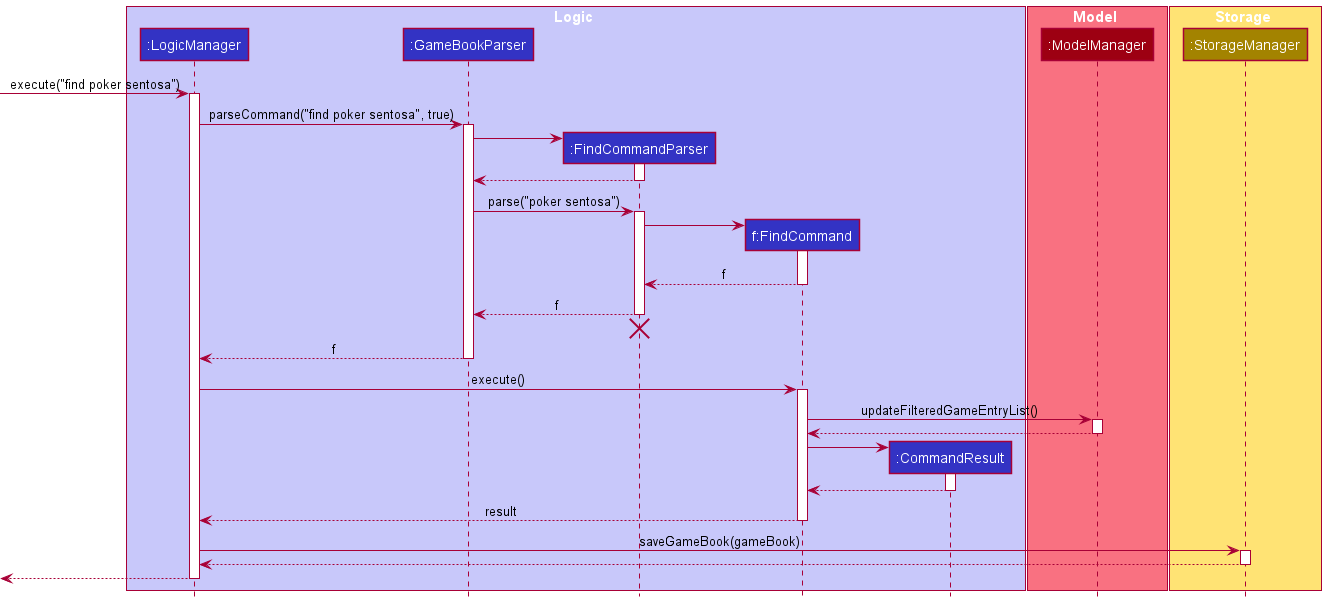

Sequence Diagram for find command

Please refer to the sequence diagrams in UI Component for details about how classes in UI interact to execute a find command.

Graphical analysis of game entries

GameBook also provides graphical analysis of average profits by Date. This is facilitated by the GraphPanel and Average classes along with the MainWindow class. It is implemented using the JavaFX LineChart and XYSeries Classes.

GraphPanel currently supports two methods:

  • drawGraphOfLatestKDates(int) - gets the TreeMap with the specified number of latest dates and average profits and adds them to the series and the line chart.
  • updateGameEntryList() - reassigns the value of the new GameEntry list to the current GameEntry list

In addition, the following method from Average is also used:

  • Average#getAverageData() - returns a TreeMap with the dates as values and average profit as keys

Found below is a step-by-step break down of the mechanism of creating and updating the graph:

  1. Upon initialising the MainWindow, a new GraphPanel is created with the game entry list from logic. During this, a new XYChart.Series is also initialised.
  2. This new GraphPanel is then added to the graphPanelPlaceholder in the main window after which GraphPanel#drawGraphOfLatestKDates(int) is called with the k value of ModelManager.NUMBER_OF_DATES_TO_PLOT which is set to 20.
  3. When GraphPanel#drawGraphOfLatestKDates(int) is called, the data for average profits is added to the averageProfits TreeMap by calling Average#getAverageData(ObservableList<GameEntry>)on the game entry list.
  4. Then, the line chart is cleared, and the series is added to the line chart
  5. The series is then cleared and then the data from the latest k dates from averageProfits is added to the series, after which the graph is plotted.
  6. After executing a command, the graph panel is updated by calling the GraphPanel#updateGameEntryList(ObservableList<GameEntry>) method on the graph panel with the updated game entry list.
  7. This resets the value of the current game entry list in the graph panel to the updated game entry list and the graph is drawn again by calling the GraphPanel#drawGraph() method.
  • A GraphPanel object is created and initialised in the main window using the filtered list from Storage drawGraphOfLatestKDates(int) is called on the graph panel to draw the graph based on existing entries as the user starts the app.
  • When the user enters a command, executeCommand(String) in MainWindow is run which calls GraphPanel#updateGameEntryList(ObservableList<GameEntry>)
  • This resets the value of the list and calls drawGraphOfLatestKDates(int) resulting in a new series being created with Average#getAverageData(ObservableList<GameEntry>), to generate a new graph
  • These steps repeat for every command entered by the user until the user exits the app.

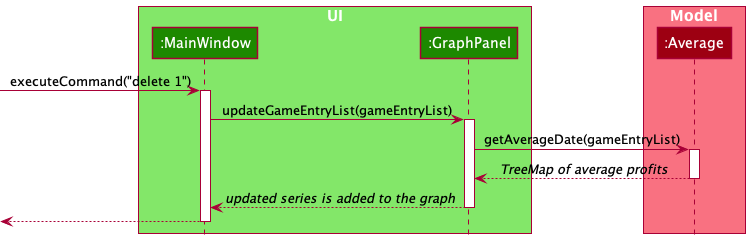

Sequence diagram for updating a graph

Additional Game Statistics

In addition to the graphical analysis of profits, GameBook also provides additional statistical data for the total average and median profit generated. This is done by the stats.Average and stats.Median classes.

The Average class contains the Average#getOverallAverage(List<GameEntry>) method which returns average profit value of all the game entries in the list as a Double value. The Median class contains the Median#getOverallMedian(List<GameEntry>) method which returns the median profit value of all entries in the list as a Double value.

These methods are then called in the StatsPanel class in the UI. The StatsPanel class contains 2 methods - StatsPanel#getStats() and StatsPanel#updateStats(ObservableList<GameEntry>) which are used to set the text fields in the UI to the Average and Median values respectively.

Found below is a step-by-step break down of the mechanism of updating the statistics:

  • When the MainWindow is initialised, a StatsPanel object is created and initialised using a ObservableList<GameEntry> The values for average and median profit are initialised 0.00 for an empty list
  • As the list is updated, StatsPanel#updateStats(ObservableList<GameEntry>) is called from MainWindow which updates the current ObservableList<GameEntry> with the new ObservableList<GameEntry> and StatsPanel#getStats() is called
  • Subsequently, StatsPanel#getStats() calls the Average#getOverallAverage(List<GameEntry>) and Median#getOverallMedian(List<GameEntry>) methods which recalculates the value of the mean and median and resets the value of the text fields in the UI.

Appendix: Additional Guides

Appendix: Requirements

Product scope

Target user profile:

  • has a need to track earnings/losses across various casino games
  • prefer desktop apps over other types
  • can type fast
  • prefers typing to mouse interactions
  • is reasonably comfortable using CLI apps

Value proposition: manage gambling earnings/losses faster than a typical mouse/GUI driven app

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Priority As a …​ I want to …​ So that I can…​
* * * new user add a new game entry keep track of my games
* * * new user delete my game entries clear entries with erroneous data
* * * new user log my gambling statistics on a per game basis keep track of my spending
* * * new user input any type of game include any game I want instead of choosing from a preset list of games
* * * new user save my net earnings and losses view data from my previous games
* * * forgetful user edit my previous game entries add details I missed out on previously
* * user who frequents multiple gambling locations input location I played at organize and sort my data by location
* * user who does not like scrolling find game entries using relevant keywords view my data quickly
* * expert user see analysis of my game statistics evaluate my game performance
* * user who vlogs view an aesthetically pleasant UI show it to my audience in my videos
* * user who is easily affected by emotions tag games which I made emotional decisions in understand how it has affected my earnings
* * user who gambles frequently see the statistics on my expenditure justify my gambling habits to my family, that it is not an addiction
* user who switches between computers frequently backup my data securely easily create copies of it to other computers
* user whose hard drive is almost full specify where the app data is stored so that I can save to another drive instead of my almost full hard drive
* user who gambles against friends frequently analyze my performance when playing against specific friends avoid betting large amounts when playing against stronger friends
* busy user see how much time I spend on each game utilize my time better
* busy user see the profit per unit time analysis of different games decide which game to play to maximize rate of earnings
* expert user see the statistics of games with specific tags evaluate my performance on games with the selected tags
* expert user compare statistics across different days of the week evaluate my performance on different days
* thrillseeking user see mean and variance calculations for different games choose the one with the highest variance to have fun
* user who frequents places with an entry fee add costs such as entry-fee into the overall calculation get a more accurate view of my profits
* organized user save different filters or sort conditions quickly view custom selections that are important to me
* user who loves alcohol tags games that I played when I am drinking see how alcohol affect my performance

Use cases

(For all use cases below, the System is the GameBook and the Actor is the user, unless specified otherwise)

Use case: Add an entry

MSS

  1. User requests to add a new game entry.

  2. GameBook adds in the new entry and displays a success message, along with any accompanying warnings.

    Use case ends.

Extensions

  • 1a. User entered the entry in an incorrect format.
    • 1a1. GameBook shows an error message, telling the user the correct command format.

    Use case resumes at step 1.

Use case: View entries

MSS

  1. User requests to list all entries.

  2. GameBook shows all entries.

    Use case ends.

Use case: Edit an entry

MSS

  1. User requests to edit a game entry.

  2. GameBook updates itself with the edited entry, and displays a success message, along with any accompanying warnings.

    Use case ends.

Extensions

  • 1a. User entered the edit command in an incorrect format.

    • 1a1. GameBook shows an error message, telling the user the correct command format.

      Use case resumes at step 1.

  • 1b. User does not choose any field to edit

    • 1b1. GameBook shows an error message, telling the user to select at least 1 field to edit.

      Use case resumes at step 1.

  • 1c. User’s edit does not change at least one field of the selected game entry.

    • 1c1. GameBook shows an error message, telling the user that the selected edit does not change the selected game entry.

      Use case resumes at step 1.

Use case: Delete an entry

MSS

  1. User requests to see the game entry list by inputting list.
  2. GameBook displays the game entry list.
  3. User requests to delete a specific entry in the displayed game entry list.

  4. GameBook deletes the entry and shows a command success message.

    Use case ends.

Extensions

  • 1a. User requests to delete an entry when game entry list is not displayed.

    • 1a1. GameBook shows an error message, telling the user the correct command format.

      Use case resumes at step 1.

  • 1b. User uses find KEYWORDS to find specific game entries in the GameBook.

    • 1b1. GameBook displays a list of matching game entries.

      Use case resumes at step 3.

  • 3a. User requests to delete a game entry that does not exist in the displayed game list. (User provides an invalid index.)

    • 3a1. GameBook shows an error message.

      Use case resumes at step 3.

Use case: Find entries by keyword

MSS

  1. User wishes to find game entries based on a given search keyword
  2. User inputs the find command with the desired keyword(s) as the parameter

  3. GameBook displays the entries which have an exact match with the keyword

    Use case ends.

Extensions

  • 2a. User doesn’t enter a keyword or enters an empty keyword

    • 2a1. GameBook shows an error message, telling the user the correct command format.

      Use case resumes at step 2.

  • 3a. The GameEntry List is empty

    • 3a1. GameBook displays 0 game entries listed!

      Use case ends

Use case: Clear all entries

MSS

  1. User requests to clear all entries
  2. GameBook prompts for confirmation
  3. User confirms

  4. The list is cleared

    Use case ends.

Extensions

  • 3a. User cancels the operation

    Use case ends.

Use case: Find help

MSS

  1. User requests for general help (help without a specific command)

  2. GameBook displays a list of command summary

    Use case ends.

Extensions

  • 1a. User requests for help for a specific command (help COMMAND)

    • 1a1. GameBook displays the command format for that command

      Use case ends.

Non-Functional Requirements

  1. Should work on any mainstream OS as long as it has Java 11 or above installed.
  2. Should be able to hold up to 1000 entries without a noticeable sluggishness in performance for typical usage.
  3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
  4. A novice should be able to grasp the basic functionalities of the system without too much difficulty.
  5. The user interface should be clear, so that new users can use the app without too much difficulty.
  6. A user should be able to easily back up data.
  7. The product is offered for free online.

Glossary

  • Mainstream OS: Windows, Linux, Unix, OS-X
  • GUI: Graphical User Interface

Appendix: Manual testing

Given below are instructions to test the app manually.

:information_source: Note: These instructions only provide a starting point for testers to work on; testers are expected to do more exploratory testing.

Launch and shutdown

  1. Initial launch

    1. Download the jar file and copy into an empty folder

    2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

  2. Saving window preferences

    1. Resize the window to an optimum size. Move the window to a different location. Close the window.

    2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Add Command

  1. Adding a game entry:

    1. Test case: add /g poker /s 20 /e 34 /date 2021-11-05 10:15

      Expected: A new poker entry with $14 profit played on 2021-11-05 10:15 is added into the list of game entries, which is sorted by date.

    2. Test case: add /g poker /p 30 /date 2021-11-05 10:15

      Expected (assuming this command is executed after (i)): A new poker entry with $30 profit played on 2021-11-05 10:15 is added into the list of game entries, which is sorted by date. GameBook also displays an alert to inform the user that an entry with the same name and date already exists.

    3. Test case: add /g blackjack

      Expected: GameBook displays an error message, because user must provide a way for GameBook to know the profit, either by providing start amount (/s) and end amount (/e), or by providing profit directly (/p).

    4. Other incorrect add commands to try: add, add /g poker /p ten, add /g poker /p 30 /date 1st january.

Edit Command

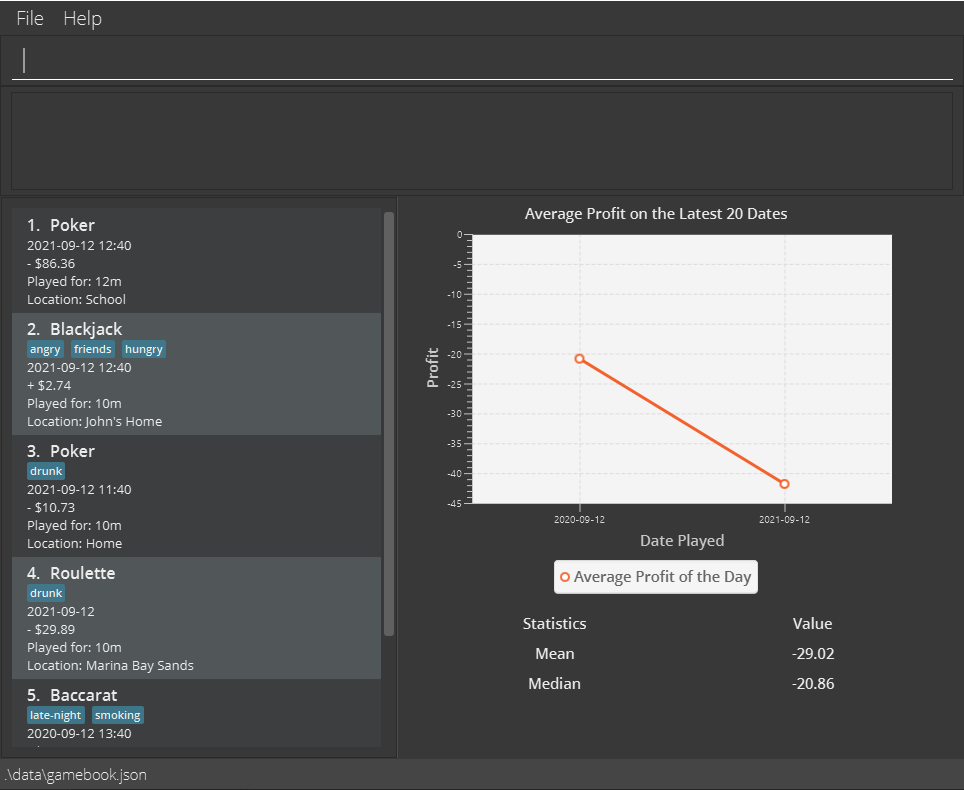

Suppose GameBook currently displays this:

  1. Editing a game entry while the list of games displayed is not empty.

    1. Prerequisites: The list of games shown is non-empty.

    2. Test case: edit 1 /g mahjong
      Expected: First game entry has its name change from Poker to Mahjong. No other changes are observed.

    3. Test case: edit 1 /date 2021-09-21 12:39
      Expected: First game is now at index 2, while the game originally at index 2 is now at index 1. The list of games shown are still sorted by date.

    4. Test case: edit 0 ...
      Expected: No game entry is edited. Error details shown in the status message.

    5. Other incorrect edit commands to try: edit x, edit y /s 10, edit y /someWrongFlag, ... (where x is larger than list size, and y is a valid index)
      Expected: Similar to previous.

Delete Command

Note: Use list to display the whole game entry list or find [KEYWORDS] to display a filtered list.

  1. Deleting a game entry while a list of game entries is shown. For this test, assume that the size of the list is larger than 1.

    1. Test case: delete 1
      Expected: First game entry is deleted from the list. Details of the deleted game shown in the status message.

    2. Test case: delete 0
      Expected: No game entry is deleted. Error details shown in the status message.

    3. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

  2. Deleting a game entry while no list of game entries is shown.

    1. Test case: delete 1
      Expected: No game entry is deleted. Error details shown in the status message.

Find Command

  1. Finding a game entry when the list of game entries is empty

    1. Test case: find poker
      Expected: 0 game entries listed!

    2. Test case: find
      Expected: Invalid command. Error message is displayed

  2. Finding game entries when the list of game entries is not empty

    1. Test case: find poker [finding by GameType]
      Expected: The resulting list contains all the game entries which have its GameType as “poker”. If there are no entries that match the search pattern then 0 game entries listed! is displayed

    2. Test case: find home [finding by Location]
      Expected: The resulting list contains all the game entries which have its Location as “home”. If there are no entries that match the search pattern then 0 game entries listed! is displayed

    3. Test case: find birthday [finding by Tag]
      Expected: The resulting list contains all the game entries which have are tagged as “birthday”. If there are no entries that match the search pattern then 0 game entries listed! is displayed

    4. Test case: find
      Expected: Invalid command. Error message is displayed

Saving data

  1. Dealing with missing/corrupted data files

    1. Test case: Change the field of a game entry in /data/gamebook.json into an invalid argument for the field (eg. changing the startAmount to abc123) before opening GameBook.
      1. Note: Correct format of arguments can be found in our User Guide.

      Expected: GameBook will open with an empty game list, and will overwrite the corrupted data file once a new game is added.

    2. Test case: Change the field of a game entry in /data/gamebook.json into an invalid argument for the field (eg. changing the startAmount to abc123) while GameBook is open, then do some operation that edits the game entry list.
      Expected: GameBook will overwrite the erroneous data and continue functioning as per normal.
